Advantages of using Altimus ARM Processor System on Modules

FASTER TIME TO MARKET

Instead of building your system from the ground up, our family of ARM-based modules can be customized to suit your specific application with different processor, memory, flash and interface options.

LESS SCHEDULE RISK

The Altimus i.MX6 SoM provides top-level performance in a cost optimized, small footprint design that is proven and shipping today.

LOWER OVERALL COST OF DEVELOPMENT

Our System on Modules are high value processing engines that power your smart product and allow your team to reduce development time, risk, and thus cost.

FOCUS ON PRODUCT DIFFERENTIATION

Altimus SoMs are supported by a team of embedded systems specialists. Base Linux and Android distributions are available for application-specific customization.




Target Applications

  • Transportation
  • Industrial Controls
  • Diagnostic Equipment
  • Professional Audio / Multimedia
  • Digital Signage

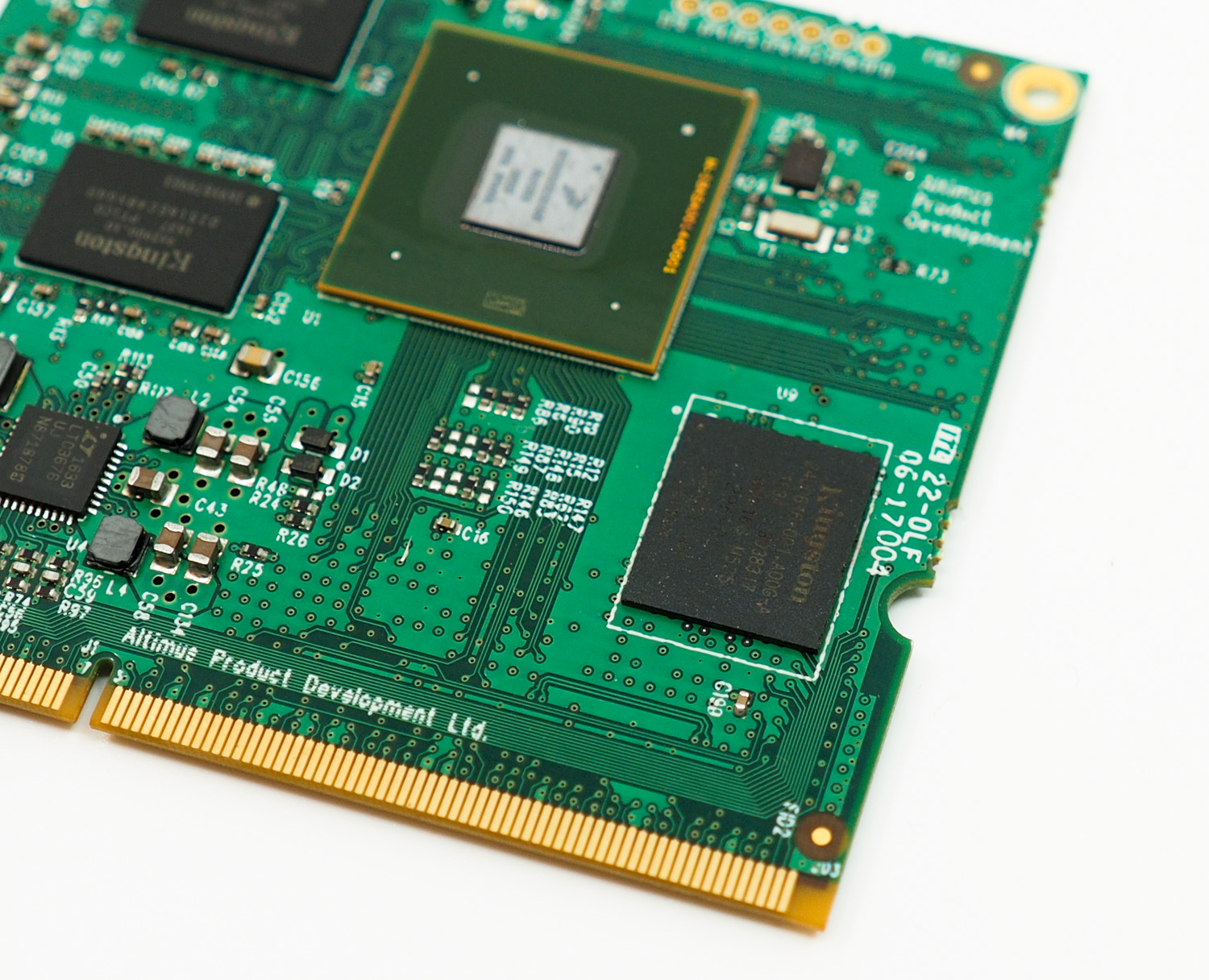

NXP I.MX6 ARM CORTEX A9 (SINGLE CORE)

Download datasheet here.

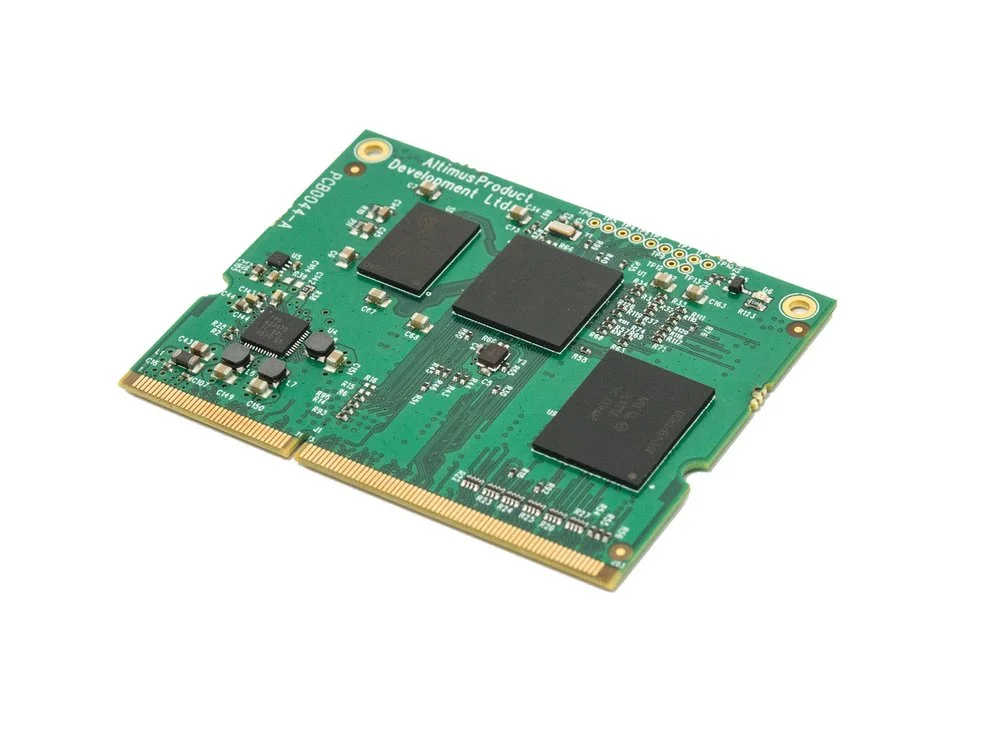

The Altimus i.MX6 SoM provides top-level performance in a cost optimized, small footprint design that is proven and shipping today. 32 bit DDR3L bus with up to 1 GB memory. Industrial or commercial temperature grades. Available in various configurations including Quad-core.

TI AM33XX CORTEX A8, UP TO 1 GHZ

Download datasheet here.

The TI AM335x SoM provides a cost-optimized solution that provides significantly faster time to market with a mature board support package and up to 512 MB DDR3L and on-board eMMC flash memory. Industrial or commercial temperature grades. Available in various peripheral configurations.

NXP I.MX6 ARM CORTEX A9 (QUAD CORE)

The Altimus i.MX6Q SoM provides the highest performance solution in a compact package. Suitable for a variety of multimedia and compute-intensive applications, it has up to a 64 bit DDR3L memory bus and supports on-board eMMC. Available in various configurations for customization.

NXP I.MX6 ULTRALITE ARM CORTEX A7

This is a new addition to our SoM family, cost optimized with all the common modern interfaces and a power-efficient Cortex A7 core, suitable for portable applications. Please contact us for more details.

NEW MODULE DESIGN CUSTOMIZED TO SUIT

If we don't have a module in our portfolio that meets your exact requirements, we can build you one to power your product for a fraction of the cost of a ground-up design. Please contact us for more details.
